Storage Containers and Trailer Skids
Description

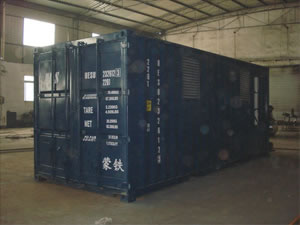

CNG tube cylinders, also known as jumbo cylinders, are large-scale steel cylinders for gas storage. The outside diameter of the storage containers and CNG trailer skids can reach 599mm. The storage containers, assembling CNG cylinder cascade together which are similar to standard container, are used for storing and transporting compressed natural gas. The operation pressures of storage containers and CNG trailer skids can be 200 bars or 250 bars according to different regulations of each country. CNG containers and jumbo cylinder skids are suitable for transporting large quantities of compressed natural gas to the places where no gas pipe networks.
Features:
1. The CNG container skids and CNG trailer skids can deliver gases to various consumers, varying from household needs and public buildings to industrial plants.
2. CNG storage containers are mostly placed in platform trailers for transporting natural gas from mother station to daughter station.
3. They also can be placed at the site as the ground storage device. CNG tube cylinders or small-sized cylinders can be gathered to CNG storage containers.
4. Our storage containers and CNG trailer skids are manufactured according to the standard ISO11120.
5. These CNG tube cylinders may apply for inspection by the international third inspection organization before they leave the factory.
6. Only professional or trained staff can operate the CNG storage containers and jumbo cylinders.
Parameters of CNG Tube Cylinders
| ITEM | DESCRIPTION | |
| TUBE CYLINDER |
Service pressure | 20MPa |
| Service temp. | -40℃-60℃ | |
| Material | 4130X | |
| Nominal capacity | 2.25m3 | |
| Hydrostatic test pressure | 33.4MPa | |
| Overall size (L*W*H) | φ559*16.8*10950 | |
Parameters of Storage Containers (4pcs.@25mpa)
| ITEM | DESCRIPTION | ITEM | DESCRIPTION | ||
| SKID | Kerb weight | 15200Kg | TUBE CYLINDER |
Service pressure | 25MPa |
| Loading weight | 1600Kg | Service temp. | -40℃-60℃ | ||
| Total weight | 16800Kg | Material | 4130X | ||
| Service pressure | 25MPa | Water capacity | 2.21m3 | ||
| Service temp. | -40℃-60℃ | Tube cylinder quantity |
4 | ||
| Media | CNG | Total gas volume | 8.84m3 | ||
| Airtight test pressure |
25MPa | Hydrostatic test pressure |
37.5MPa | ||
| Gas volume | 2228Nm3 | Overall size (L*W*H) |
φ559*17.4*10950 | ||
| Overall size (L*W*H)mm | 12192*2438*1400 | ||||
| RUPTURE DISC |
Rupture pressure | 37.5MPa | |||
| Release outlet size |
≥φ22 | ||||
Parameters of Tube Skid Container (8pcs.@20MPa)
| ITEM | DESCRIPTION | ITEM | DESCRIPTION | ||
| SKID | Kerb weight | 26550Kg | TUBE CYLINDER |
Service pressure | 20MPa |
| Loading weight | 2600Kg | Service temp. | -40℃-60℃ | ||
| Total weight | 29150Kg | Material | 4130X | ||
| Service pressure | 20MPa | Water capacity | 2.25m3 | ||
| Service temp. | -40℃-60℃ | Tube cylinder quantity |
8 | ||
| Media | CNG | Total gas volume | 18m3 | ||
| Airtight test pressure |
20MPa | Hydrostatic test pressure |
33.4MPa | ||
| Gas volume | 4540Nm3 | Overall size (L*W*H) |
φ559*16.8*10950 | ||
| Overall size (L*W*H)mm | 12192*2438*1400mm | ||||
| RUPTURE DISC |
Rupture pressure | 33.4MPa | |||
| Release outlet size |
≥φ22 | ||||
Founded in October 2006, LANDYTK® Machine. is a professional manufacturer and supplier of storage containers and CNG trailer skids in China. We offer natural gas cylinders, CNG tube cylinders, jumbo cylinders, CNG compressors, CNG conversion kits, current distributors, inverters, power generation equipment and other CNG equipment. Our CNG storage containers and jumbo cylinder skids are exported to Bengal, Myanmar, Pakistan, Thailand, Singapore, Malaysia, Uzbekistan, Ukraine, Russia, Armenia, America and Australia.
