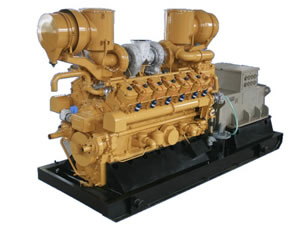

Gas Generator Sets
Description:
Gas generator sets are able to supply continuous electrical power at variable load in the case of utility power failure. The gas powered generator sets generate electricity by burning combustible gases such as natural gas or liquefied gas. Gas generator sets are designed to reduce the production of nitrogen oxides and increase fuel efficiency. They can provide reliable performance, maximum thermal efficiency and low nitrogen oxides emissions. Gas generator sets can be used for applications such as high–hour peaking, prime power and combined heat and power.
Standard Reference Conditions: 45℃ or more than 45℃ water inlet temperature, 12000 (Kj/kwh) engine gas consumption. The cooling method adopts open type circular water cooling with radiator. All engine performance data based on the above mentioned maximum continuous ratings.
Features of Gas Generator Sets:
1.This gas powered generator set is an eco-friendly and high-efficiency new energy generator.
2.It has many advantages, such as a wide range of output power, small size, convenient maintenance as well as low noise and less vibration.
3.The gas powered generator sets can adopt either water cooling system or air-water mixed cooling system.
4.The gas generator sets, equipped with good starting performance and high success rate of startup, are easy to operate.
5.Electricity generated by gas generator sets is of good quality.
6.Adopting clean and low-cost combustible gases such as natural gas and methane as fuel, the gas powered generator sets can operate reliably with low cost and non-pollution.
Parameters:
| 400GF-TK | 500GF-TK | |
| Type | Turbo charging air inter cooling, four-stroke and spark plug ignition | Turbo charging air inter cooling, four-stroke and spark plug ignition |
| Ex-mixing | Ex-mixing | |
| Cylinder position | In V line with 60° angle | In V line with 60° angle |
| Cylinder quantity | 12 | 12 |
| Cylinder diameter (mm) | 190 | 190 |
| Piston stroke(mm) | 210 | 210 |
| Compressing ratio | 8:1 | 9:1 |
| Rated speed(r/min) | 1000 | 1000 |
| Idle(r/min) | 650 | 650 |
| Rated power(Kw) | 400 | 500 |
| Average effective pressure (MPa) | 0.82 | 0.84 |
| Gas pressure (MPa) | ≥0.01 | 0.08-0.15 |
| Engine gas consumption (Kj/kwh) | ≤12000 | ≤12000 |
| Oil consumption (g/kwh) | 1.6 | |
| Discharging temp(before turbo) | ≤600 (℃) | ≤660 (℃) |
| Water output temp. (℃) | ≤90 | ≤90 |
| Water inlet temp. of inter cooler | ≤45 (℃) | ≤45 (℃) |
| Oil temp.(inside crankcase oil tray) | ≤90 (℃) | ≤90 (℃) |
| Oil pressure in the primary oil channel (kPa) | 390-780 | 390-780 |
| Oil model | Great wall15W-40CD | Great wall15W-40CD |
| Cooling method | Open type circular water cooling with radiator | Open type circular water cooling with radiator |
| Lubricating method | Press to lubricating and splash the lubrication oil by crank motion | Press to lubricating and splash the lubrication oil by crank motion |
| Crank turning(front view at wheel) | Anti-clockwise | Anti-clockwise |
| Overall dimension (L×W×H) (mm) | 5100×1650×2330 | 5100×1650×2780 |
| Net weight (kg) | 10800 | 11500 |
Founded in October 2006, LANDYTK® Machine. is a professional manufacturer and supplier of gas generator sets in China. Our main products include generator sets, CNG compressors, CNG cylinders, inverters, CNG conversion kits, current distributors, etc. Our gas generator sets with good performance are equipped with either water cooling or air-water mixed cooling system. We establish strict quality management system to ensure the quality of our gas powered generator sets.
