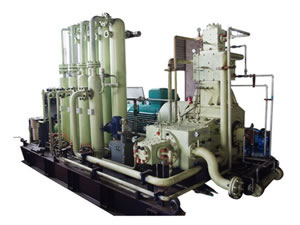

Natural Gas Compressor

Home » Products » Natural Gas Station Equipment » CNG compressors » Natural Gas Compressor

Description:
Also known as CNG Compressor, the ordinary natural gas compressors have type L, ZW, D, W and so on with their own characteristics and advantages.

Features of L Type Natural Gas Compressor:
1. L type Compressor is designed for small or middle sized conventional CNG stations.
2. This CNG compressor has many advantages, such as compact structure, appealing configuration, energy saving, and less oil lubricating.
4. Gas pipelines, water pipelines and meter lines integrally link the main body and coolers.
5. Air cooling or water cooling is available.

Features of ZW Type Natural Gas Compressor:
1. This type is a middle speed compressor with upright structure.
2. Output efficiency is increased by the non-balance sect designation.
3. With oil-free lubricating, ZW type can leads to stable performance and less vibration.

Features of D Type and 4M Type (Horizontal Structured) Compressor
1. The horizontal natural gas compressor is a middle speed compressor with skid-mounted package.
2. It mainly applies to CNG mother station with large supply production.
3. D type CNG compressor can operate stably and reliably due to the horizontal balanced structure.
4. The horizontal structured natural gas compressor with less vibration and noise is easy to maintain.
5. Average working speed of piston is 2.7m/s, and the PV value is very low under the same combined rod load.
6. It can prolong service life of wearing parts and reduce the running costs with high reliability.
7. Direct driving and flying wheel promote machine operate quickly and effectively.

Functions of PLC Cabinet:
1. PLC cabinet can provide over/less pressure protection for inlet pressure.
2. PLC cabinet can offer over-pressure protection for discharge of every stage.
3. PLC cabinet can support over-temperature protection for last stage outlet and lubricant oil.
4. PLC cabinet can give less-pressure protection for cooling water.
5. PLC cabinet can provide over-load protection for the motor.
6. PLC cabinet can automatically start or stop.

Parameters of Natural Gas Compressor:

Model	D-3.22/1-250-AN	D-4.5/1-250-AN	4M5.5-9.5/250-AN	4M5.5-14/250-AN	4M5.5-17/250-AN
Media	Pure natural gas	Pure natural gas	Pure natural gas	Pure natural gas	Pure natural gas
Mode	D-type, water cooling, 4 stages	D-type, water cooling, 4 stages	D-type, water cooling, 4 stages	D-type, water cooling, 4 stages	D-type, water cooling, 4 stages
Inlet Pressure	0.1 Mpa	0.1Mpa	0.1Mpa	0.1Mpa	0.1Mpa
Discharge Pressure	25Mpa	25Mpa	25Mpa	25Mpa	25Mpa
Inlet Temperature	≤30℃	≤30℃	≤30℃	≤30℃	≤30℃
Discharge Temperature	≤45℃ (after cooled)	≤45℃ (after cooled)	≤45℃ (after cooled)	≤45℃ (after cooled)	≤45℃ (after cooled)
Supply Capacity	380 Nm³/h	533 Nm³/h	1000 Nm³/h	1500 Nm³/h	1800 Nm³/h
Rotation Speed	740r/min	740 r/min	585r/min	585r/min	740r/min
Transmission Mode	Direct couple	Direct couple	Direct couple	Direct couple	Direct couple
Shaft Power	≤88 KW	≤130 KW	≤215 KW	≤320 KW	≤385 KW
Electric Motor	90 KW, dllBT4, 380V, 50 Hz	132 KW, dllBT4, 380V, 50 Hz	250 KW, dllBT4, 380V, 50 Hz	350 KW, dllBT4, 380V, 50 Hz	400 KW, dllBT, 380V, 50 Hz

Model	ZW-3.22/1-250-AN	ZW-5.0/1-250-AN	ZW-8.0/1-250-AN
Media	Pure natural gas	Pure natural gas	Pure natural gas
Mode	ZW-type, water cooling, 4 stages	ZW-type, water cooling, 4 stages	ZW-type, water cooling, 4 stages
Inlet Pressure	0.1Mpa	0.1Mpa	0.1Mpa
Discharge Pressure	25Mpa	25Mpa	25Mpa
Inlet Temperature	=30℃	=30℃	=30℃
Discharge Temperature	=45℃(after cooled)	=45℃(after cooled)	=45℃(after cooled)
Supply Capacity	380 Nm³/h	533 Nm³/h	800 Nm³/h
Rotation Speed	740r/min	740r/min	740r/min
Transmission Mode	Direct couple	Direct couple	Direct couple
Shaft Power	=86.1 KW	=115 KW	=169 KW
Electric Motor	90 KW, dllBT4, 380V, 50 Hz	132 KW, dllBT4, 380V, 50 Hz	185 KW, dllBT4, 380V, 50 Hz
