Diesel Generator Sets
Description:

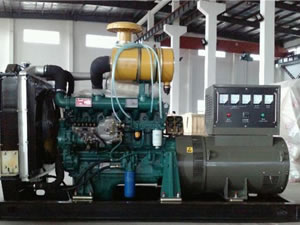

Diesel generator set is a kind of generating equipment which regards diesel as main fuel, and diesel engine as motive power to drive generator for electricity generation. It can convert the kinetic energy into electric energy and thermal energy. Diesel generator set consists of diesel engine, generator, controller, base, radiator and fuel tank etc. It is suitable for the places without connection to the power grid. We can utilize diesel generator set as standby and emergency power-supply when the power grid fails. In addition, it also can be used for more complex applications such as utility peaking plants, peak-lopping, grid support and power management at large commercial or industrial sites.
Products:
1.Diesel generator set with 8 to 30 KW is used for homes, small shops and offices.
2.Diesel generator set with 8 to 2,000 KW is applied to large buildings and factories.
3.A 2,000 KW set can be housed in a 40 ft (12 m) ISO container with fuel tank, controls, power distribution equipment and other equipment needed to operate as a independent power station or as a standby backup to grid power.
Features of Diesel Generator Set:
1.This generator set is proven stability and reliability.
2.This diesel generator set adopts rotary diesel filter, oil filter and dry-type air filter.
3.Characteristics of this diesel powered generator set are high efficiency, operational flexibility, low oil consumption and emission.
4.With compact structure, it can be operated easily with little noise.
Sample Specification of Diesel Generator Set
| Model | 80GF | |
| Continuous | Back up | |
| Power (KW) | 80 | 100 |
| Power (KVA) | 100 | 125 |
| Current (A) | 144.32 | 180.4 |
| Dimension (mm) | 2700 ×900 ×1350 | |
| Weight (KG) | 1440 | |
| Engine power (KW) | 121 | |
| Engine model | R6105AZLD | |
| Cooling mode | Close type, water cooling | |
| Speed governing system | Mechanism speed governor | |
| Starting method | Electrical start two pieces 12V 100A Battery | |
| Engine filter system | Air filter, diesel filter, oil filter | |
| Bore/Stroke (mm) | 105/130 | |
| Diesel oil consumption (g/h.kw) | ≤218 | |
| Oil capacity (L) | 17 | |
| Generator Mode | 80 gf | |
| Rated voltage/frequency/power factor | 380V/220V, 50 HZ, 0.8 Lag | |
| Rotation speed/Phase | 1500R/Min, three phase four line | |
| Voltage fluctuation rate | ±0.5% | |
| Steady-rate frequency regulating | 0-5% Adjustable | |
| Transient frequency adjustment rate | -7%-12% | |
| Voltage regulator | AVR | |
| Idle load voltage regulating | ≥95%-100% | |
| Steady-state voltage regulation rate | <0.5% | |
| Transient voltage regulation rate | ±15% | |
| Insulation grade/protection grade | Grade H/IP22 | |
| TIF/Harmonic coefficient | TIF＜50/ TIF＜2% | |
Founded in October 2006, Chongqing Anran Gas Technology Co Ltd. is a professional manufacturer and supplier of CNG equipment and technology in China. Our main products include generator sets, CNG compressors, CNG cylinders, inverters, CNG conversion kits, current distributors, etc. Our diesel generator sets are used as standby and emergency power-supply when the power grid fails. We establish strict quality management system to ensure the quality of our products.
